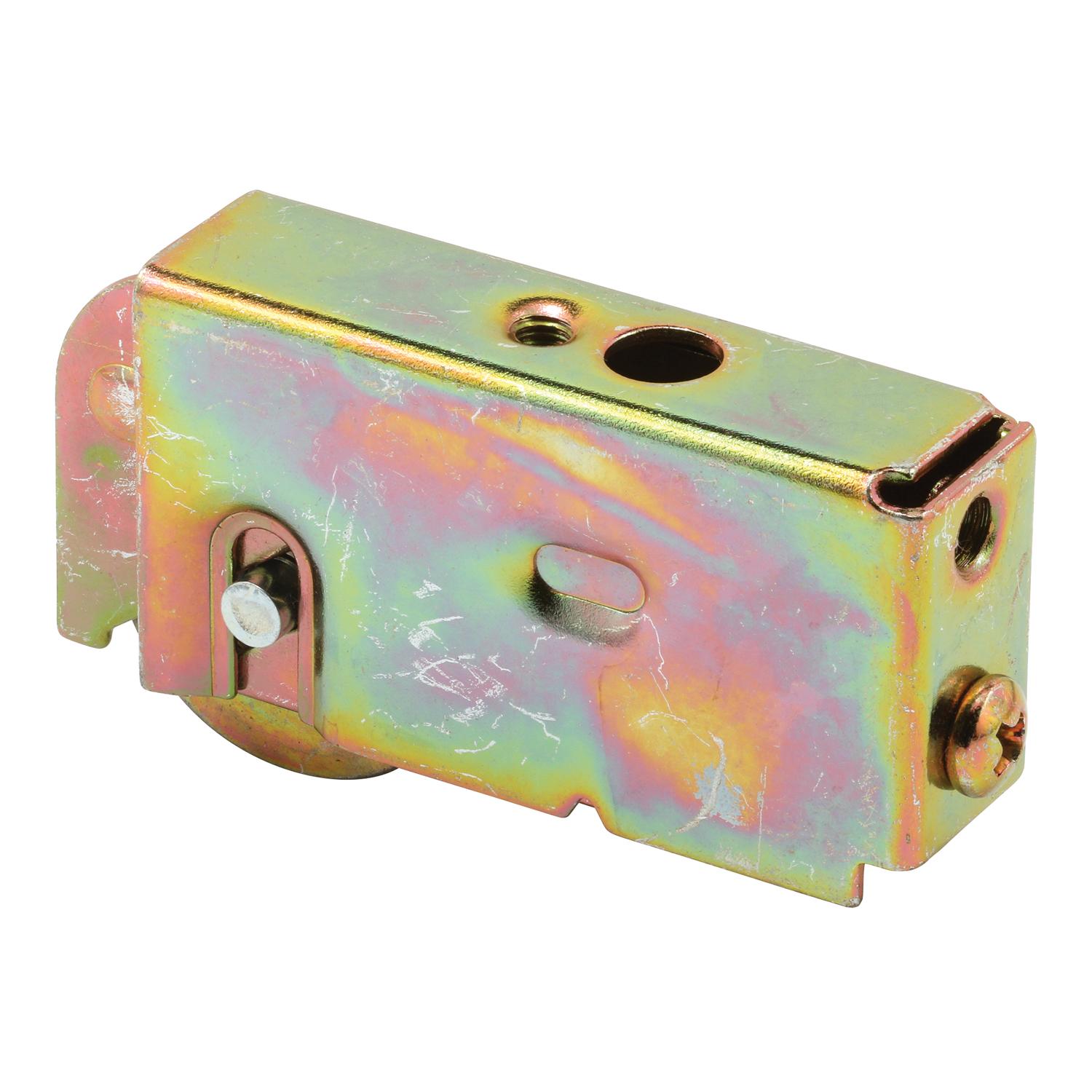

This is a plain back patio door roller assembly with a 1-1/4 in. concave or grooved steel ball bearing roller. It has a plain back housing that is 3/4 in. wide and 1-3/8 in. tall. It is rear adjusting with a 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on top. It is used by Air Control, Howmet, Krestmark and a variety of other manufacturers of patio doors.
Used by Air Control, Howmet, Krestmark and a variety of other sliding patio door manufacturers
Plain back housing with 1/4-20 threaded mounting hole on back
1-1/4 in. diameter concave steel roller
Stamped steel housing with ball bearing roller
Features rear screw adjustment
Used on metal framed sliding patio doors
A Phillips head screwdriver is required for installation

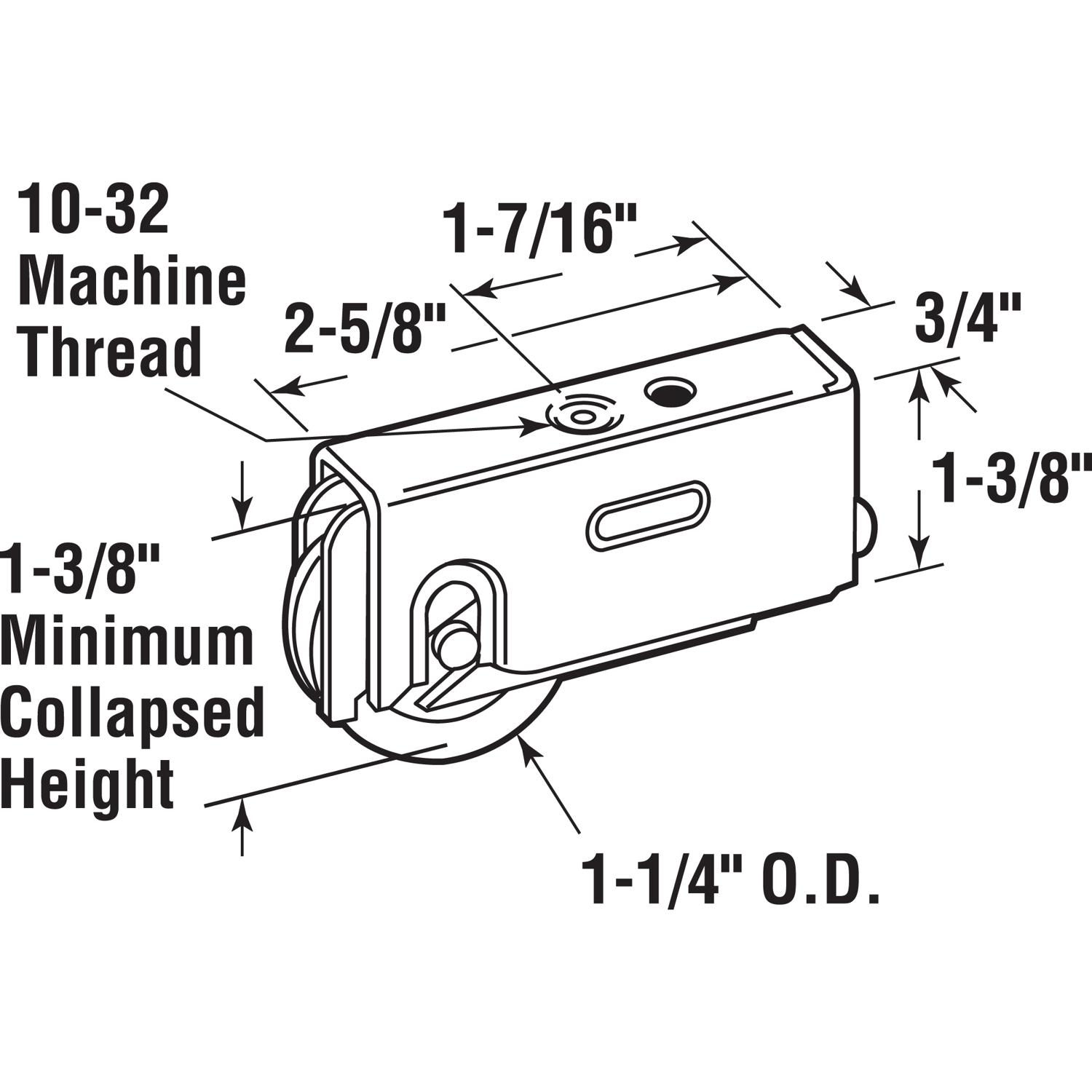

For further dimensional information, please see the line drawing
