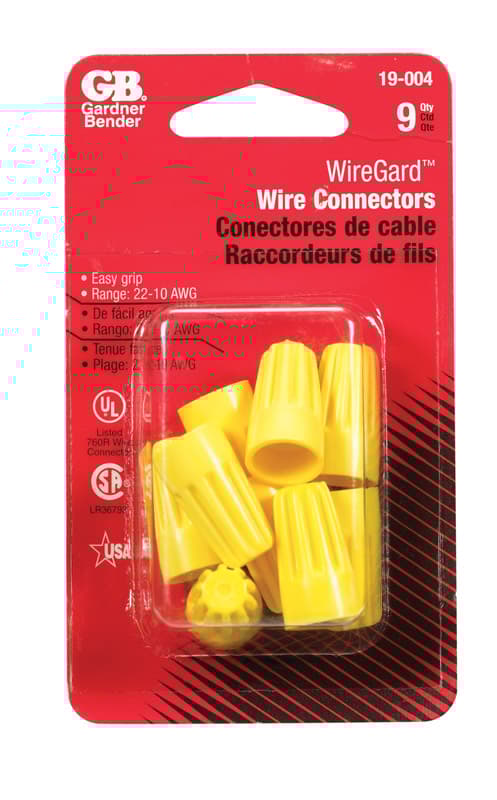

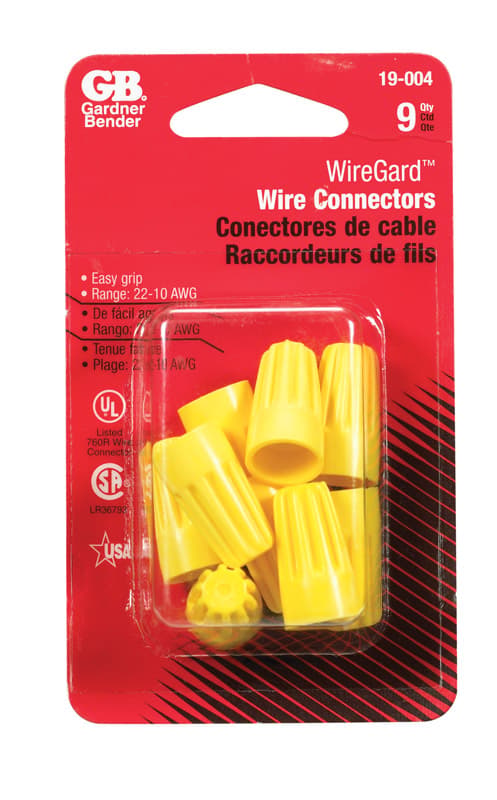

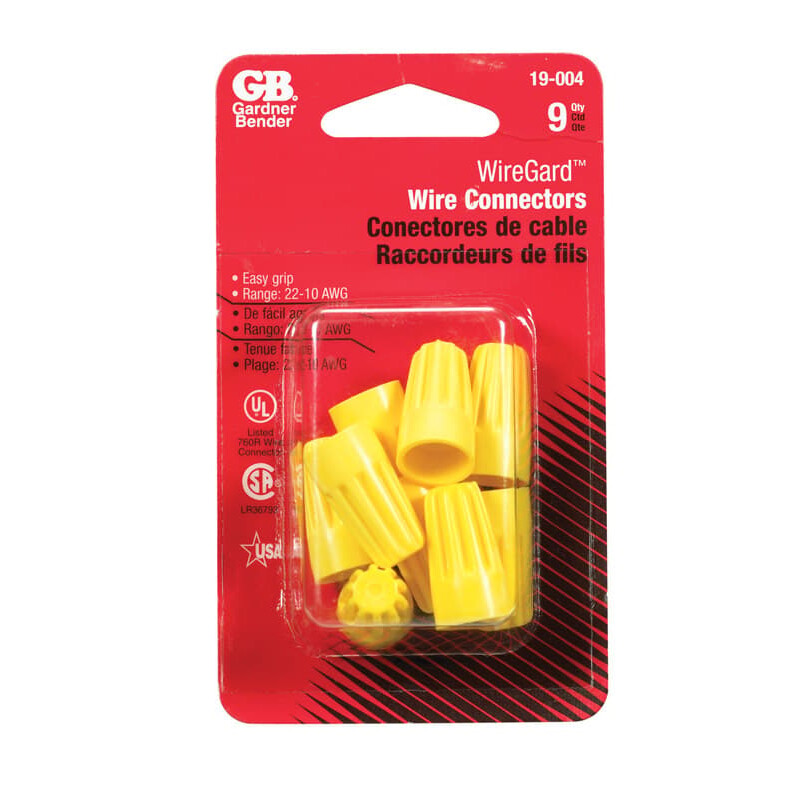

WireGard twist-on wire connectors are designed for general purpose applications requiring the connection of 2 or more copper wires. WireGard connectors feature a straight type Polypropylene shell with side knurling for an easy grip. The inner spring is zinc-plated to resist corrosion and has a tight square profile to make quick secure contact with wires and ensure connections with positive continuity. These all purpose connectors require fewer turns to meet required torque and meet or exceed UL pull out and dielectric test requirements. The tough thermoplastic shell shields against environmental extremes and resists chemical action from hydrocarbons, diluted acid or alkaline solutions. The high-dielectric shell also features a deep skirt design to prevent exposure of bare wire. Flame-retardant properties resist heat distortion up to 105 Celsius (221 Fahrenheit).
Color-coded for easy size selection
Makes quick, secure connections for positive continuity, tightens without ratcheting, yet removable for re-use
Tough, thermoplastic shell shields against environmental extremes, smooth surface eliminates porosity and cracking
Resists chemical action from hydrocarbons, dilute acid or alkaline solutions
Flame retardant properties resists heat distortion up to 105 degrees C, 221 degrees F
High-dielectric shell features deep skirt design to prevent exposure of bare wire
Copper to copper connections only
Superior flash-over protection
Versatile size selection covers building wire combinations from #18 to #10 AWG
One #14 with one #18 minimum wire and four #14 maximum wire
