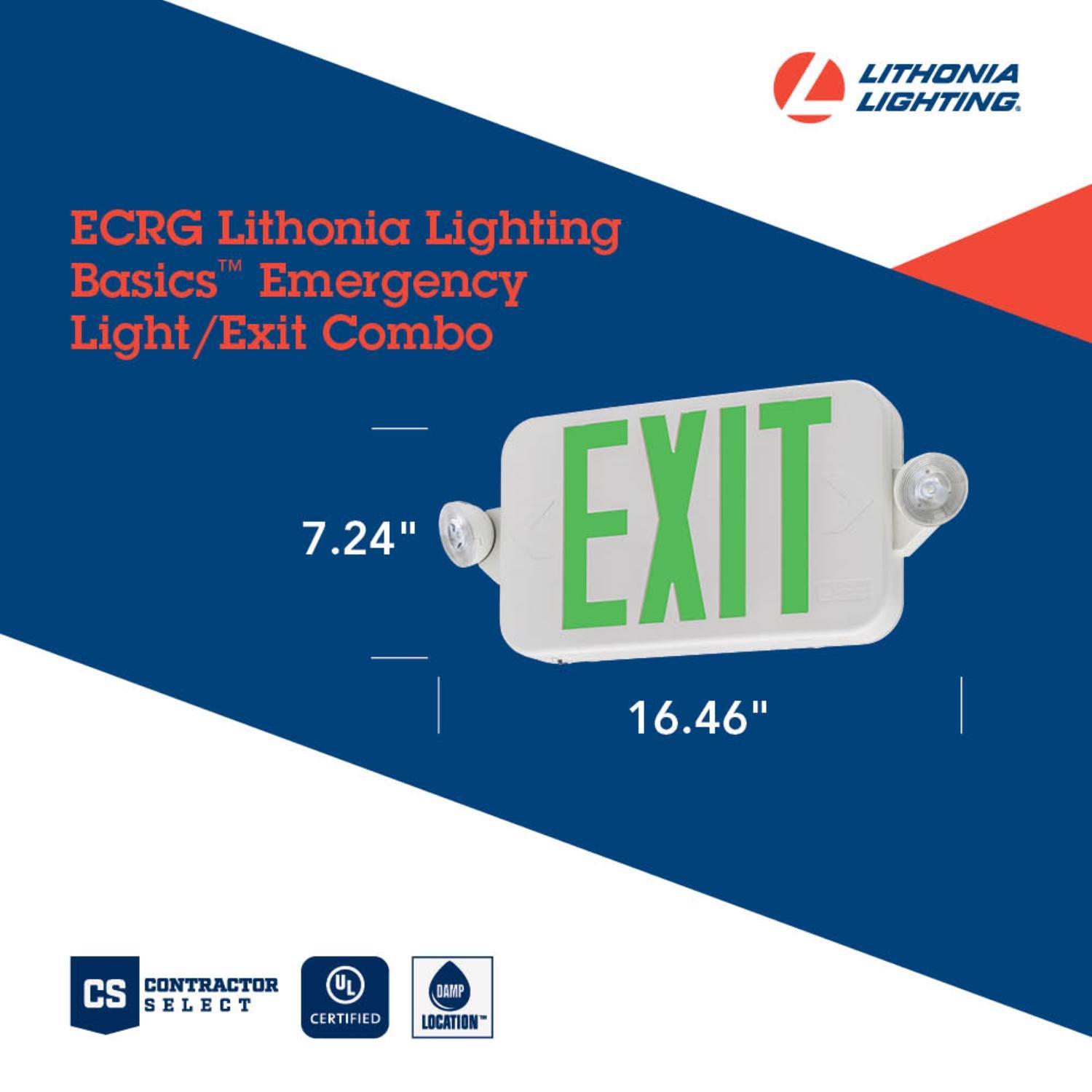

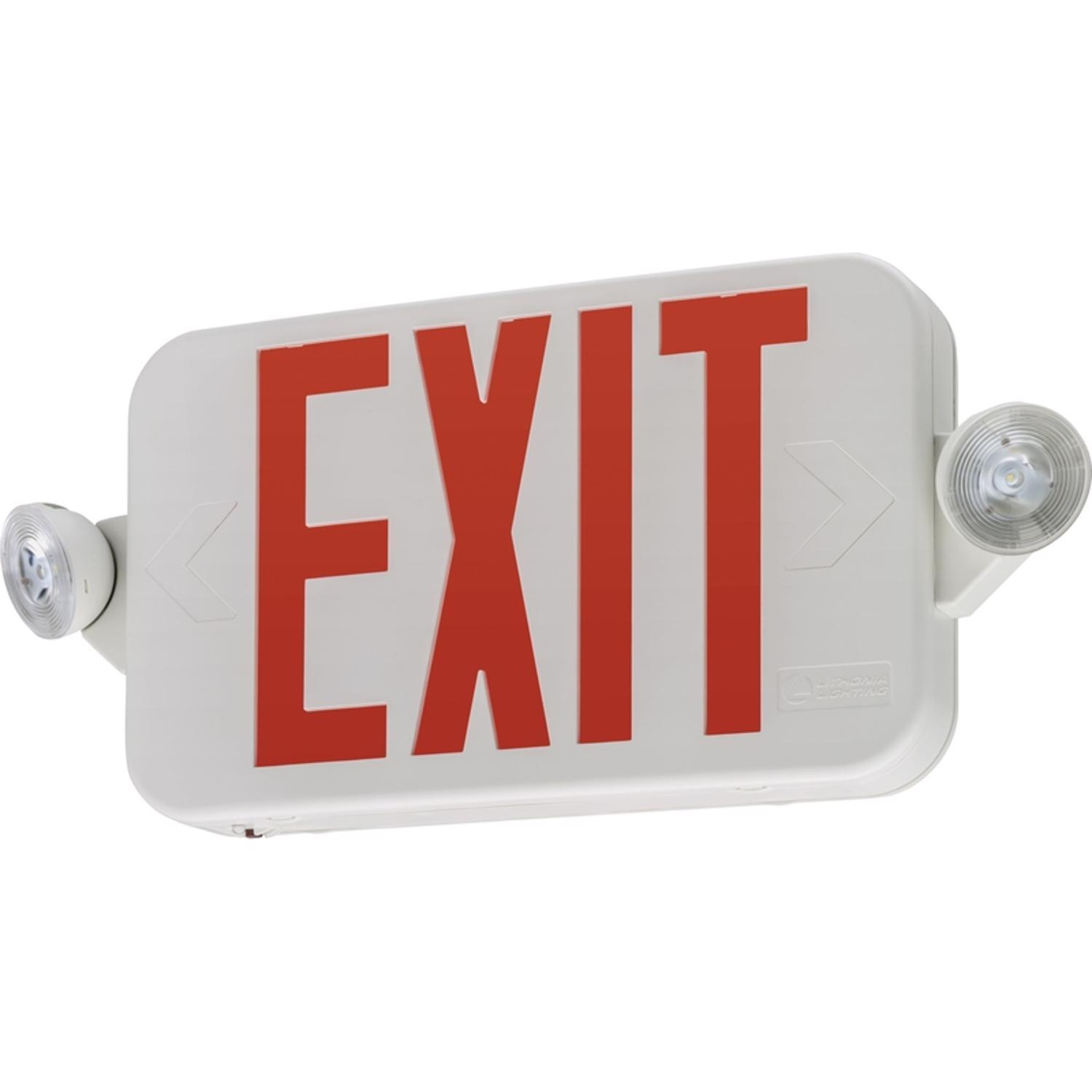

The Lithonia Lighting Basics ECRG, is a combination of exit and emergency lighting. The ECRG is ideal for safely illuminating the path of egress above-the-door in small spaces at lower mounting heights while providing 90-minutes of emergency power. Contains ability to switch between red and green letters.

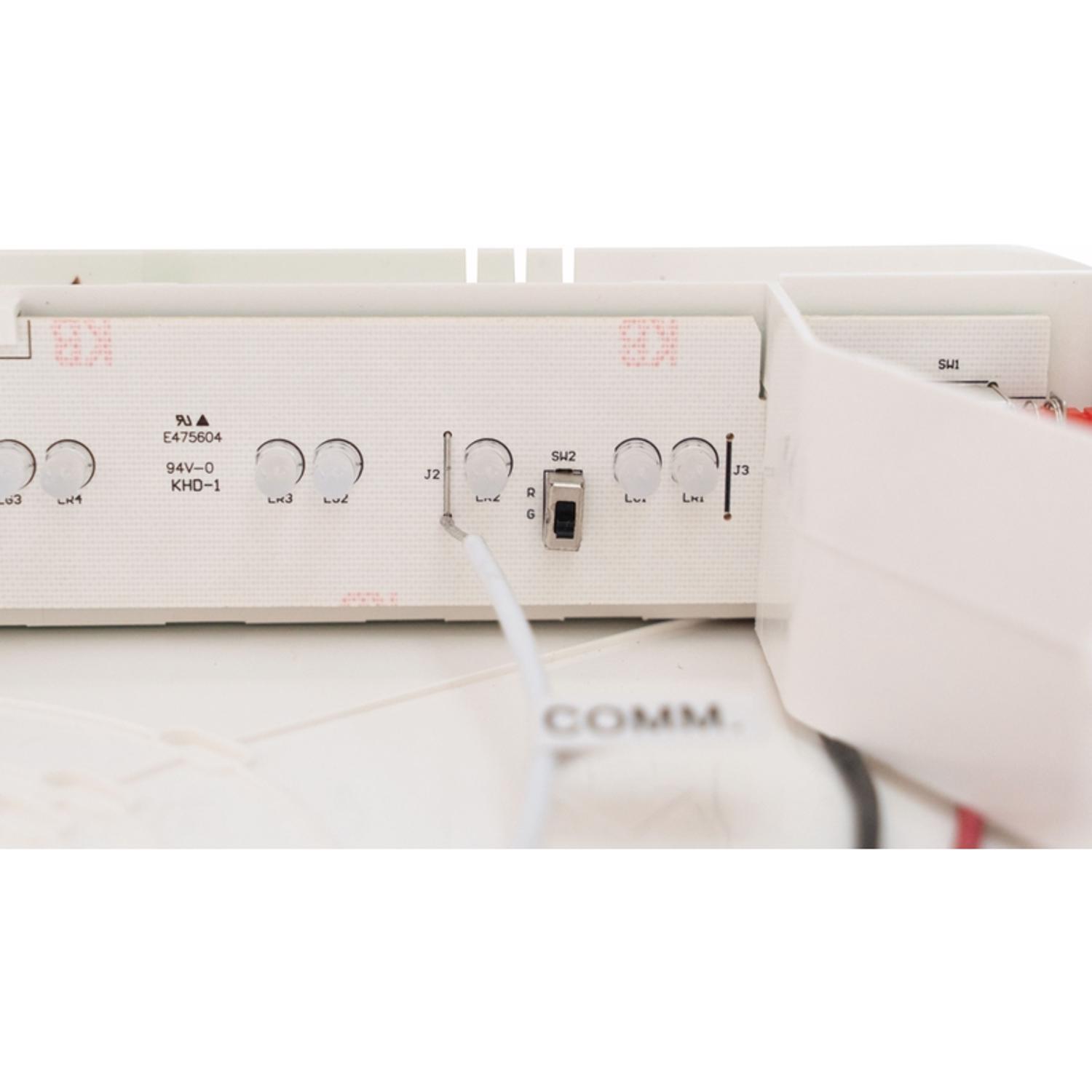

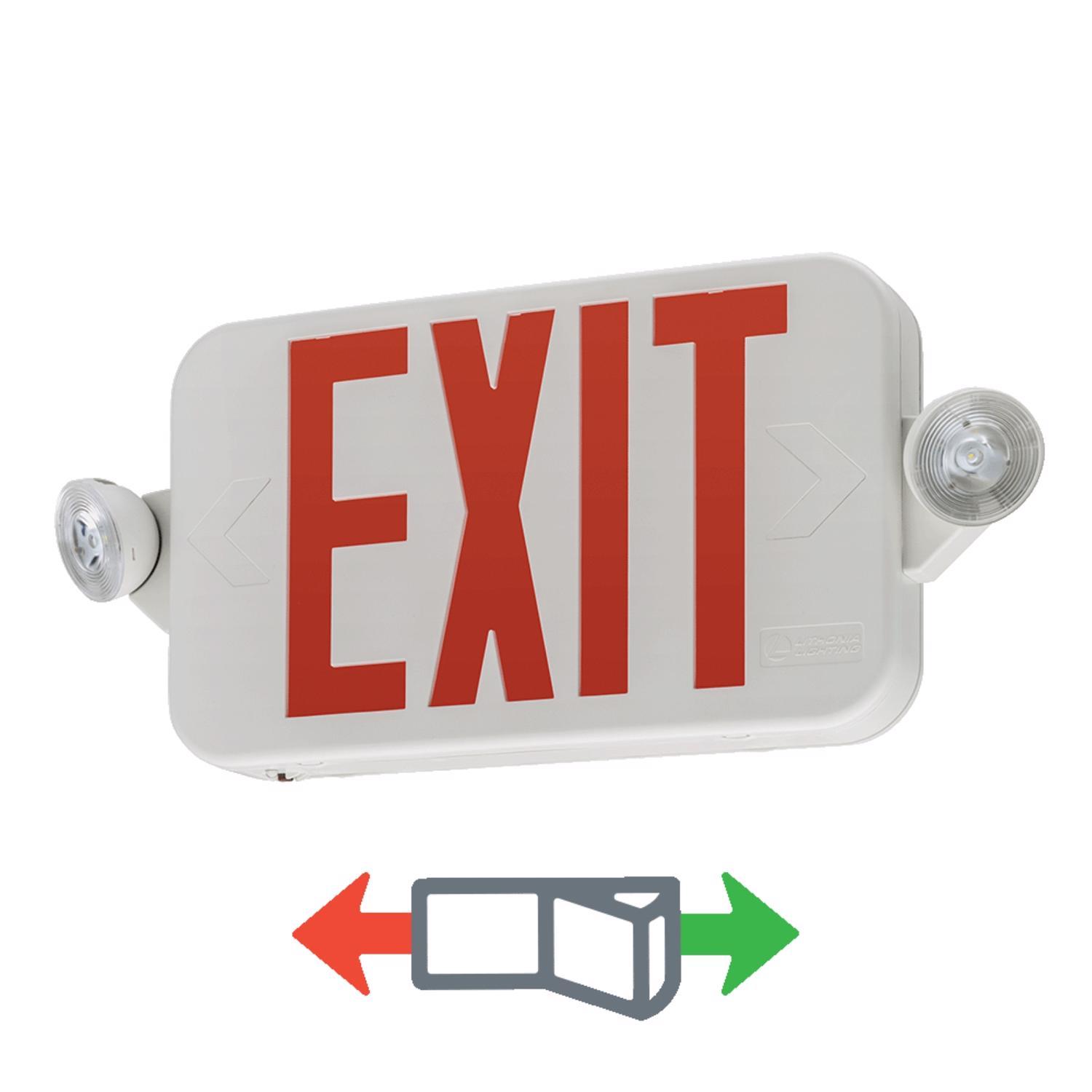

ECRG LED exit sign has an internal switch for red or green color selection

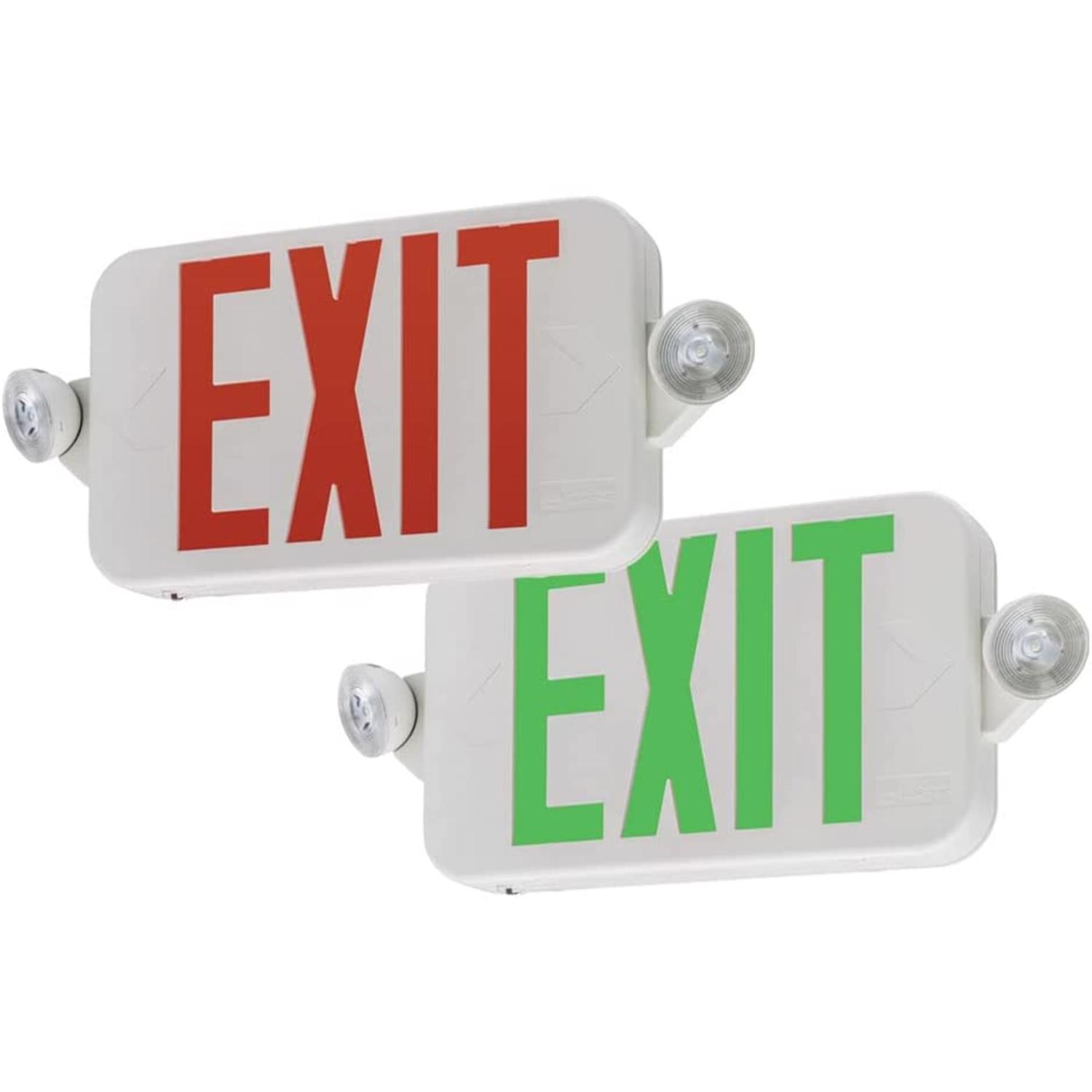

Offered in the new bright white thermoplastic housing, the EXRG has a classic design with updated features, this fully assembled single-face exit comes with an extra faceplate and red and green panel inserts for ultimate field configurability
Multi-voltage 120-Volt - 277-Volt, 50 Hz/60 Hz
UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current life safety code), NFPA 70 (NEC), FCC title 47, part 15, subpart B and OSHA, indoor damp location 50F to 104F (10C to 40C) listed
Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes
Typical life of the LED lamp is 10-years
Provides a minimum of 90-minutes illumination for the rated wattage upon loss of AC power to meet code required emergency lighting
Battery: 3.6-Volt maintenance-free, rechargeable, nickel metal hydride
