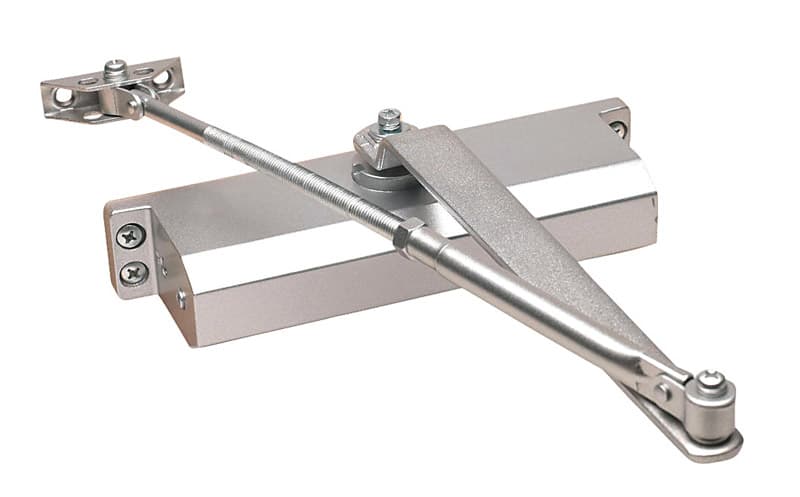

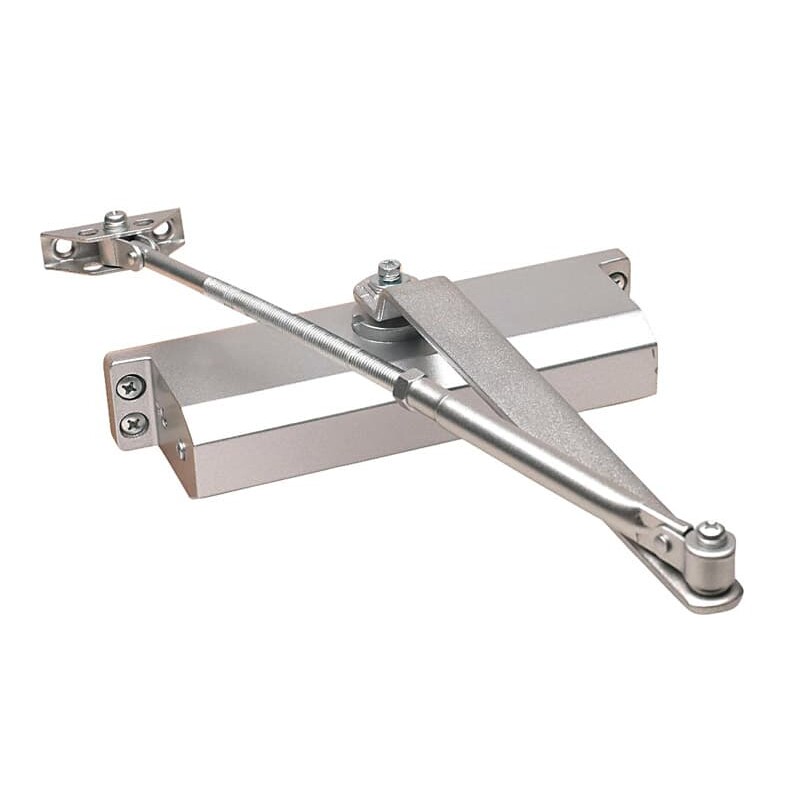

Tell Manufacturing's 500 Series Door Closer is designed for interior commercial use. It is a Grade 3 heavy-duty aluminum commercial door closer that complies with ANSI A156.4, UL/ULC listed up to 3 hour fire rated. The DC100039 has a fixed spring tension, size 5.
Forged steel, accommodates reveals up to 3 1/4 inch adjustable extension arm
Adjustable hydraulic providing cushioning and preventing uncontrolled openings of the door
Grade 3 size 5 aluminum finish closer
9-1/16 inch horizontal and 3/4 inch vertical mounting hole locations
Tri-pack regular, top jamb and parallel arm applications
Door range up to 180 degree
Complies with ANSI A156.4, grade 1, 2 million cycles, UL/ULC listed up to 3 hours fire rated
Adjustable, independent, non-critical (sweep and latch), consistentand closing speeds
