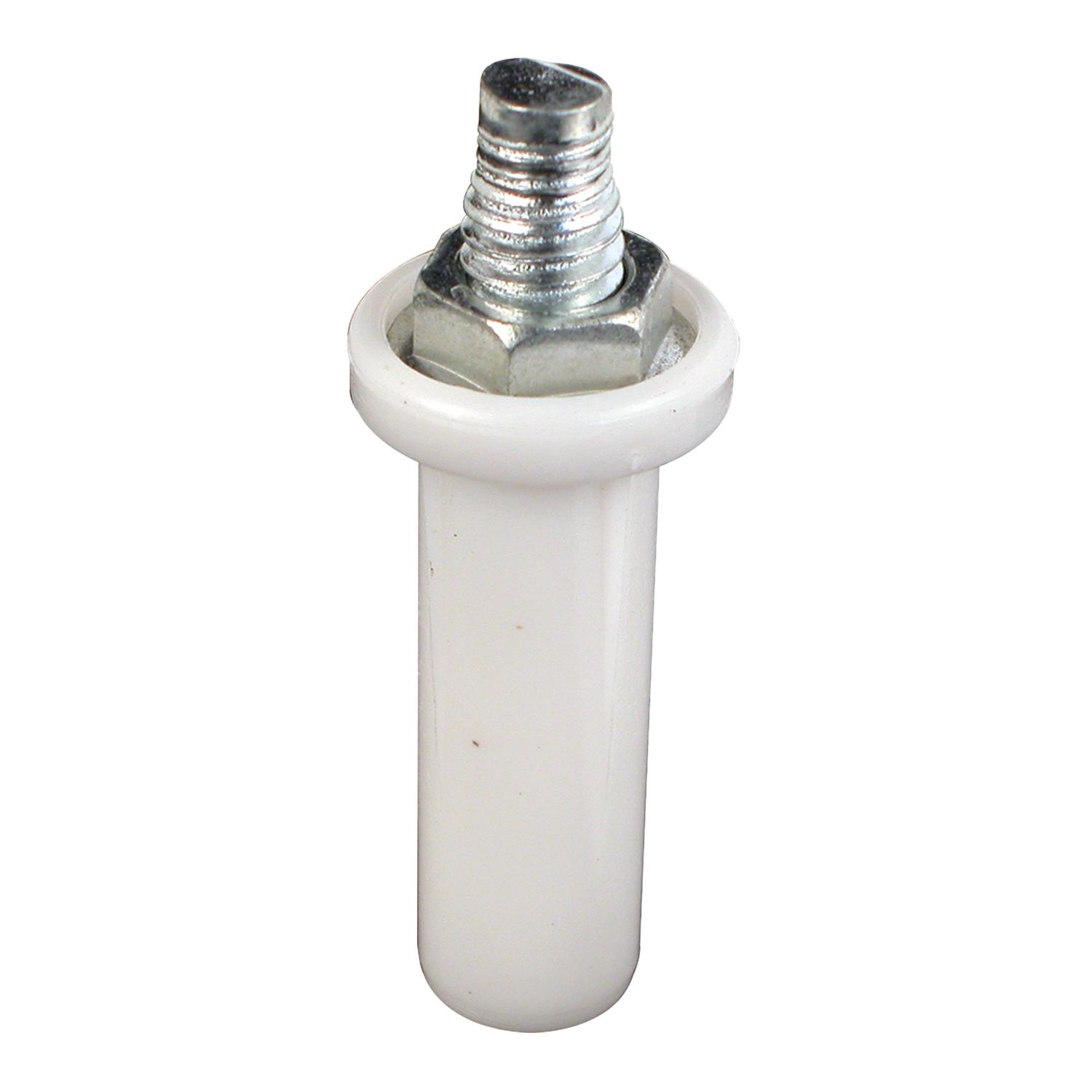

This is a bottom mount pivot used on Cox and a variety of other bi-fold door manufacturers. The 7/16 in. diameter nylon base houses a 3/16 in. pivot with a hex head nut for adjustment. It fits 1 in. to 1-3/8 in. thick bi-fold doors weighing up to 30 lbs. each.
Used on Cox and a variety of other bi-fold doors
Fits doors 1 in. to 1-3/8 in. thick
Bottom mount
Nylon base with hex head nut
Easy to install
Maximum weight limit is 30 lbs
A soft mallet may be required for installation

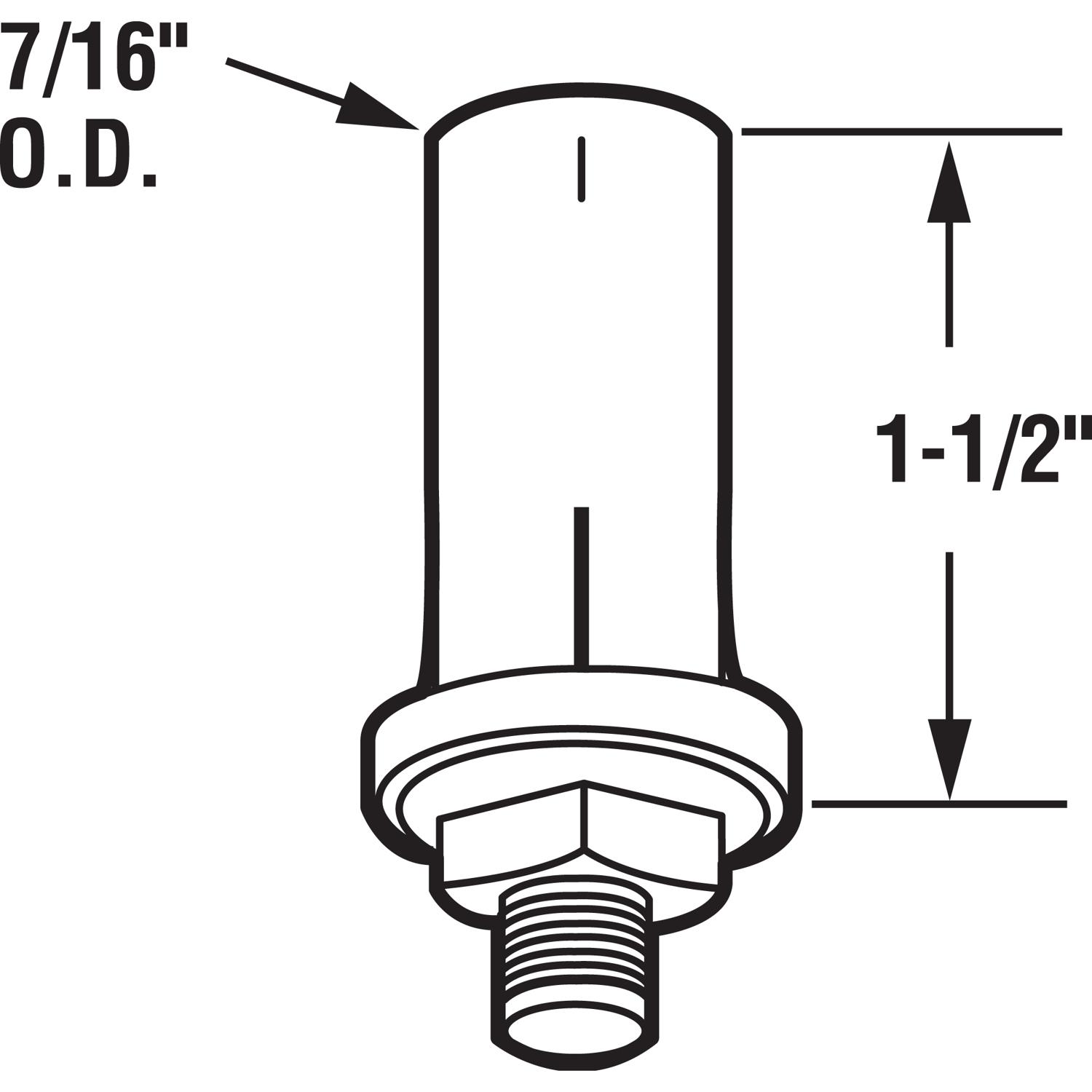

For further dimensional information, please see the line drawing
