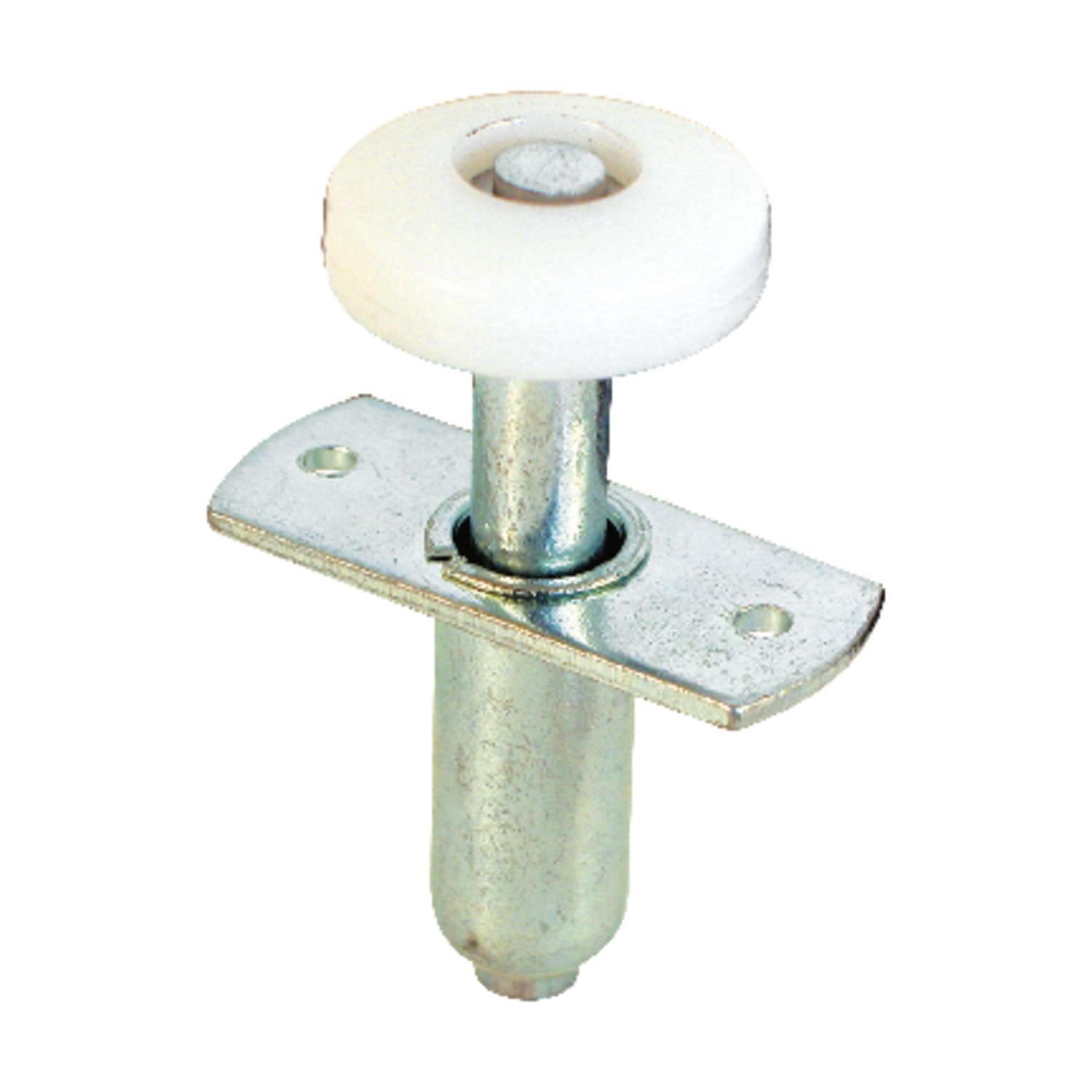

This is a spring-loaded 3/4 in. diameter nylon roller guide in a steel nail down base. The base is 3/8 in. with two nail down tabs on either side. It mounts on the top edge of a bi-fold door that is 1 in. to 1-3/8 in. thick and can hold up to 30 lbs. maximum.
Used by a variety of bi-fold door manufacturers
Spring-loaded base
3/8 in. base with tabs
Steel base and 3/4 in. nylon roller
2-pack
A soft mallet may be required for installation
Easy to install

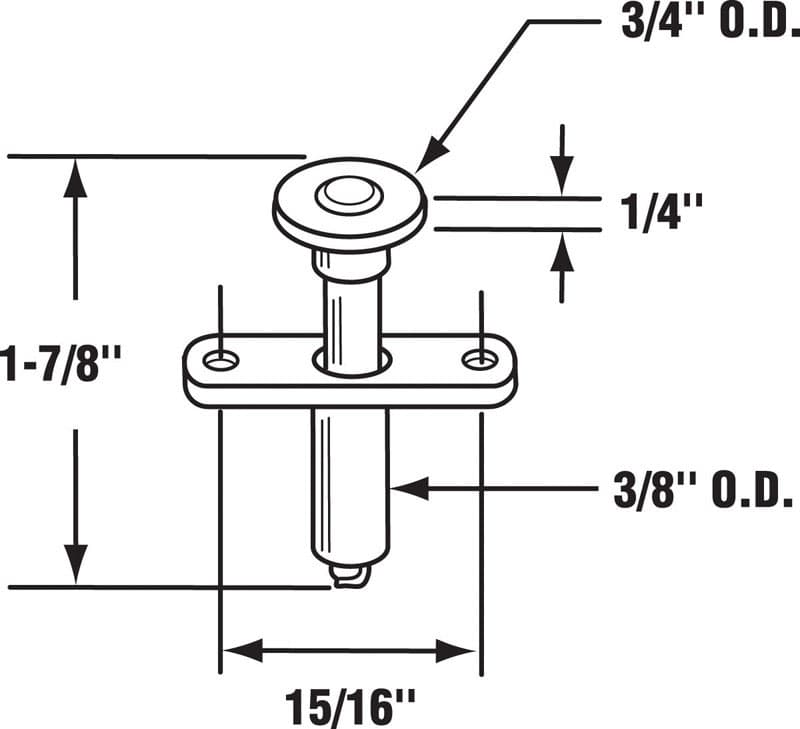

For further dimensional information, please see the line drawing
