Prime-Line Steel Indoor and Outdoor Mortise Lock
Prime-Line Steel Indoor and Outdoor Mortise Lock
Price Match Guarantee!
3
in stock at Sulphur
FREE Store Pickup
Available for Pickup Today!
Selected Store
Ship to Home
- Shipping is available for this item.
Send email
Print
Copy link

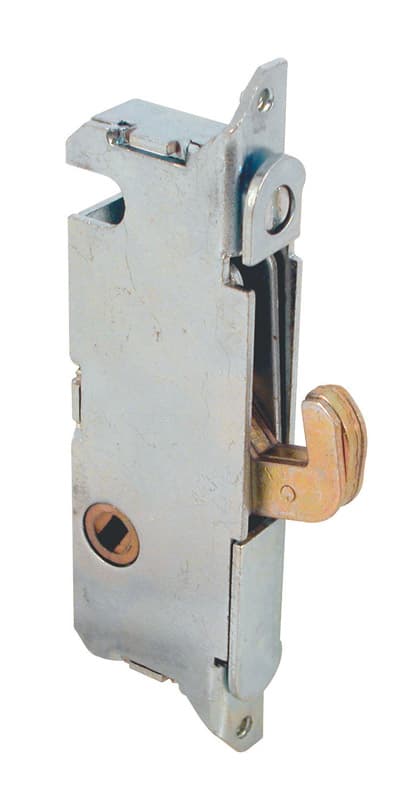

This mortise lock is constructed of steel components with rounded faceplate ends. It features an adjustable, spring-loaded hook latch projection, and it can be used on sliding patio doors constructed of wood, aluminum and vinyl. This lock works with mortise style, surface-mounted patio door handle sets with 45 degree angled keyway positions when in the locked position. The mounting hole centers of this lock measures 3-11/16 in. from center to center, and the rear housing corners are square. This mortise lock is used by many patio door manufacturers. Selection tip: to ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) the distance of the mounting holes measured from center to center, 2) the faceplate ends; rounded or square, 3) the position of the slotted keyway when in the locked position; at 45 degree angle or vertical, and 4) the shape of the housing corners at the rear; square or slanted. Installation tip: watch the manufacturer’s how-to video that is linked to this item page.
- Used to replace damaged or missing mortise locks in sliding patio doors by W and F and many other manufacturers
- 1/2 in. wide x 1-1/8 in. deep x 3-3/16 in. faceplate height with 3-11/16 in. mounting hole center spacing and 45 degree keyway
- Features square corner housing with rounded faceplate ends
- Steel construction for increased durability
- Spring loaded adjustable hook lock
- Used on a 45 degree keyway
- A Phillips head screwdriver is required for installation

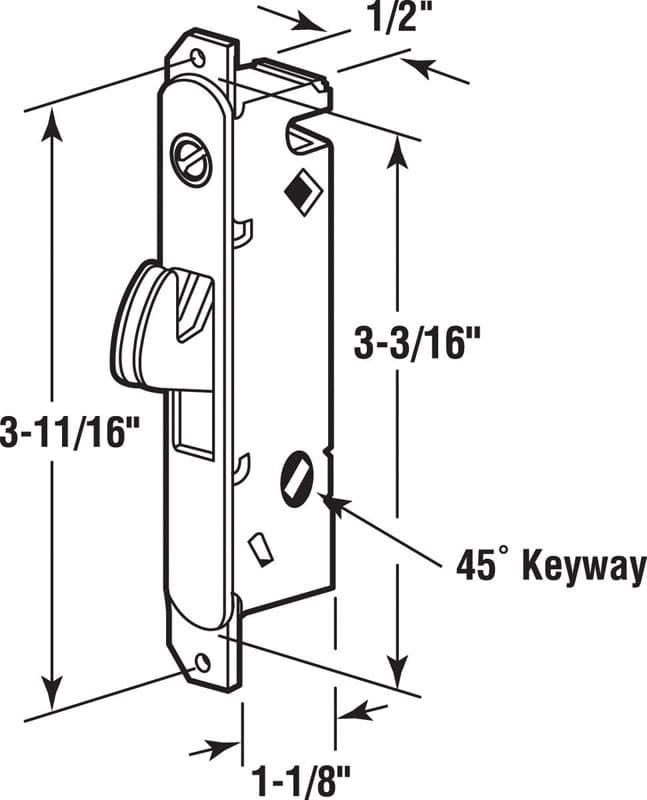

- For further dimensional information, please see the line drawing
- Prime-Line
- 1
- E 2014
- 5133426
- Mortise Lock
- Silver
- Commercial and Residential
- YEs
- 3.19 inch
- Steel
- 1 pack
- Carded
- 0.5 inch
- Indoor and Outdoor
- Silver
