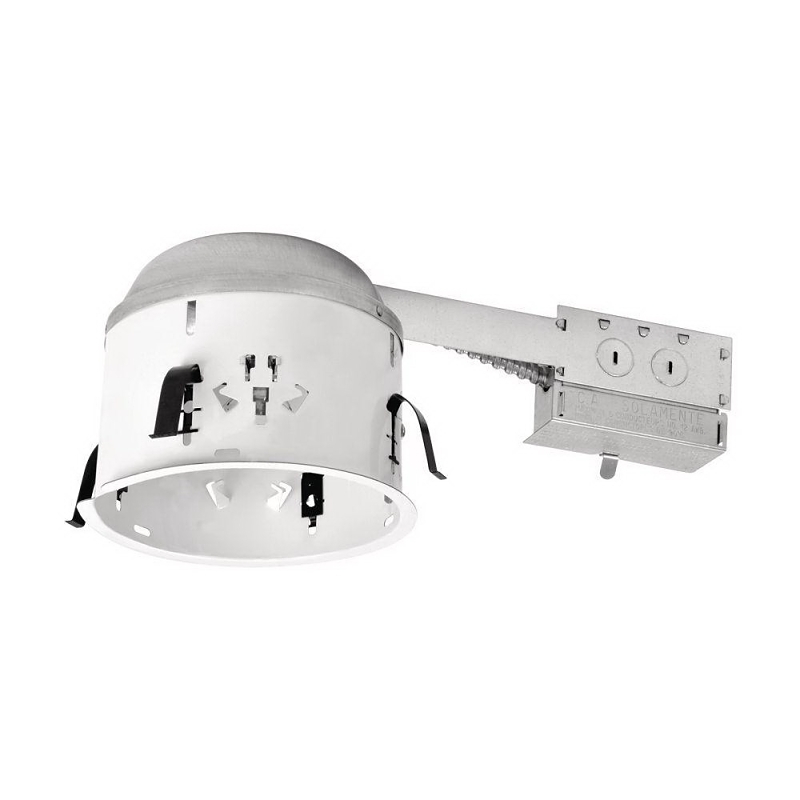

The H27RT housing is designed for remodeling use in shallow ceiling. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. The H27RT is designed for use in non-insulated shallow ceilings. If ceiling insulation is present, it must be kept 3 in from all sides of housing.
Remodel springs accommodate 1/2 in and 5/8 in ceiling material
NM cable pryouts and conduit knockouts in junction box
Shallow ceiling housing
Rigid socket plate adjusts and locks without tools for various lamp sizes
Seven conduit knockouts are uniform 1/2 in size with true pryout slot
Three quick-connect connectors eliminate need for separate wire nuts - simply strip supply wires and push in
Four remodel clips secure housing and accommodates 1/2 and 5/8 in ceiling material
Porcelain socket with nickel-plated brass screw shell
Integral thermal protector deactivates fixture if an incorrect lamp is used or if ceiling insulation material is not applied correctly
