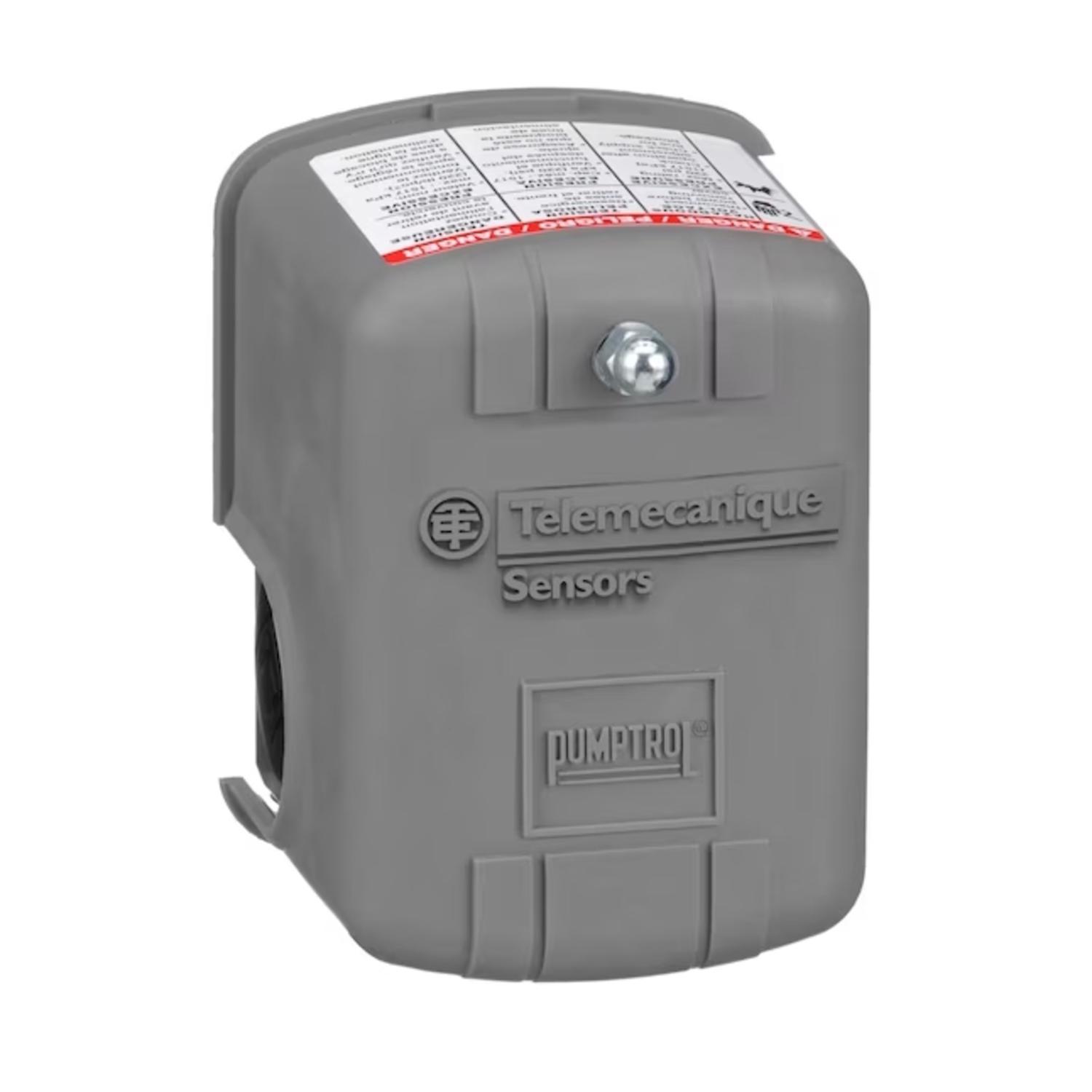

Telemecanique Pumptrol 40 psi 60 psi Pressure Switch
Telemecanique Pumptrol 40 psi 60 psi Pressure Switch
Price Match Guarantee!
1
in stock at Sulphur
FREE Store Pickup
Available for pickup: Estimated 3-7 days from:
Selected Store
Ship to Home
- Shipping is unavailable at this time.
Send email
Print
Copy link
This Pumptrol FSG2J24BP electromechanical pressure switch is the most trusted brand in residential, commercial and industrial pumping applications. For over 75 years, Square D pressure switches continue to meet the needs of customers. The FSG2J24BP has a 40 PSI to 60 PSI pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 1 enclosure has a 1/4 inch NPSF internal fluid connection and screw clamp terminals. The switch works with a 1. 5 HP or less pump. The adjustable differential range is 15 PSI to 30 PSI and the cut out range is 20 PSI to 65 PSI. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified.
- Class 9013
- Diaphragm actuated
- Adjustable cut in/out and differential.
- Suitable for jet pumps, submersible pumps and reciprocating pumps
- Standard action contacts
- Single and 3 phase rated
- Can be mounted in any position
- Conduit plug included
- Electrical Life - 100,000 operations
- Captive Cover Screw doesnt fall off
- Telemecanique
- 1
- FSG2J24CP
- 4135844
- Pumptrol
- Pressure Switch
- Yes
- 60 pound per square inch
- 158 degree Fahrenheit
- 40 pound per square inch
- 32 degree Fahrenheit
- Pumptrol
- NPT
- Yes
- Stainless Steel
