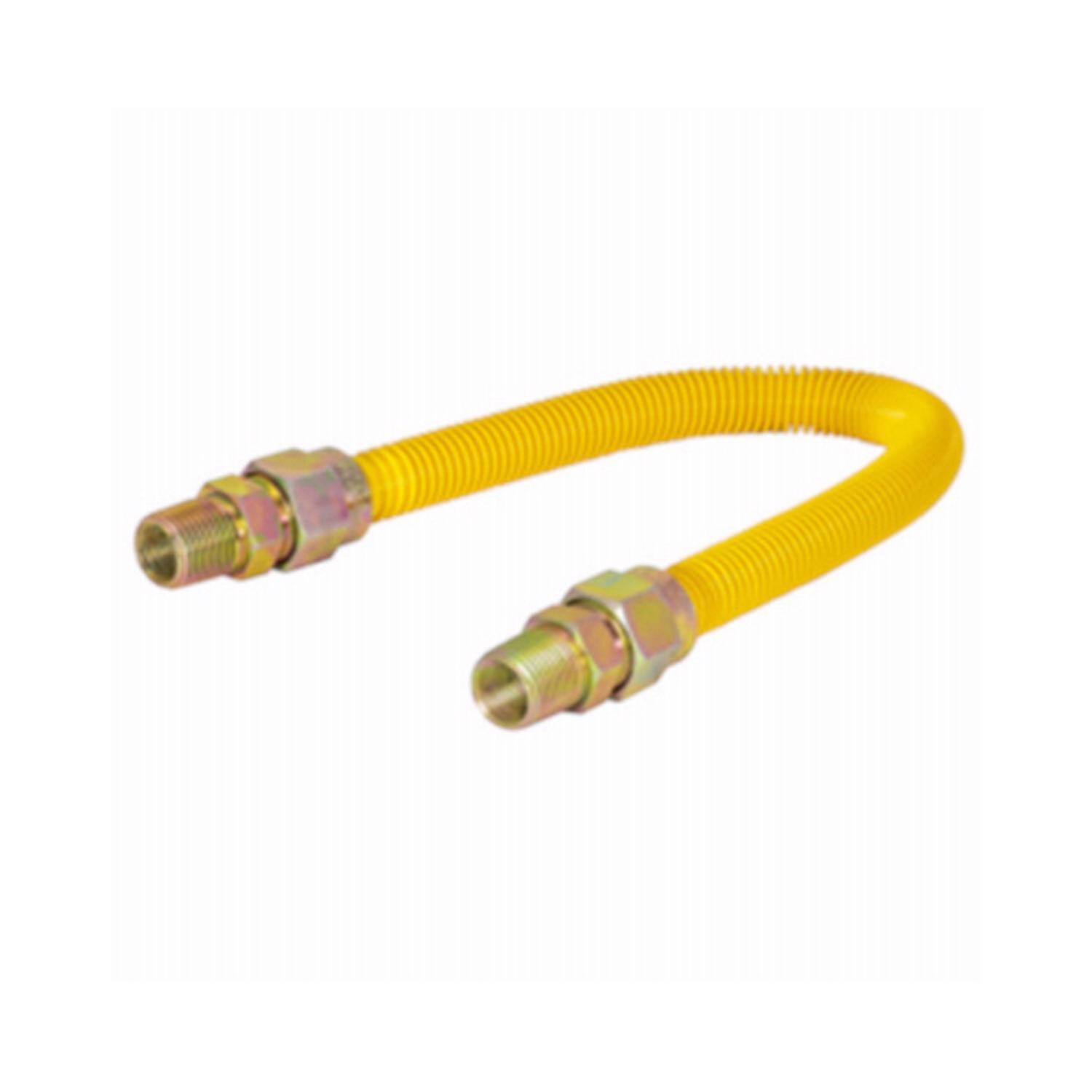

The Eastman 5/8-IN OD gas connector is designed to connect most major brands of gas ranges, boilers, and high-usage appliances to a shut-off valve. The connector is certified for use with most ranges and boilers with gas ratings up to 106,000 BTUs. Epoxy Coating provides extra protection from corrosion, chemical stains from common household products, and UV rays and is approved for indoor/outdoor use. includes (1) 48-IN 5/8-IN OD epoxy-coated gas range connector, (1) 3/4-IN FIP fitting, (1) 3/4-IN MIP (Tapped 1/2-IN FIP) fitting.
Use with large demand residential, RV/mobile home and commercial gas appliances not subject to frequent movement
Connector flow capacity straight length is 106,000 (NG)169,600 (LPG) BTU's
CSA approved for indoor and outdoor use as well as for mobile home cross-over and foundation-to-gas supply connections
Protects the home from fires and explosions due to gas line ruptures and disconnects at the appliance
Approved and listed by CSA and IAPMO to ANSI Z21.24, ANSI Z21.75. and CSA 3-92
Not recommended for infrared radiant tube heating systems
