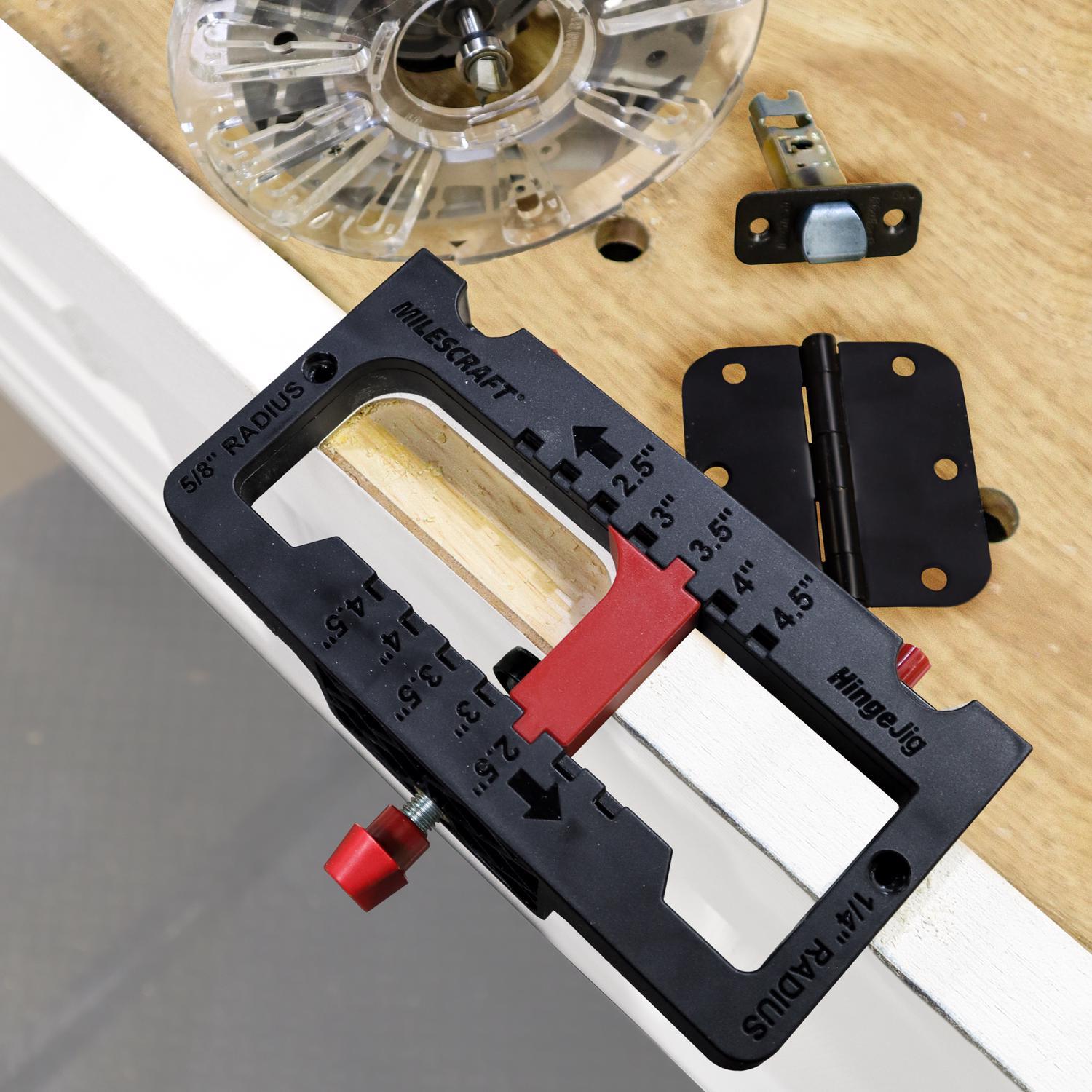

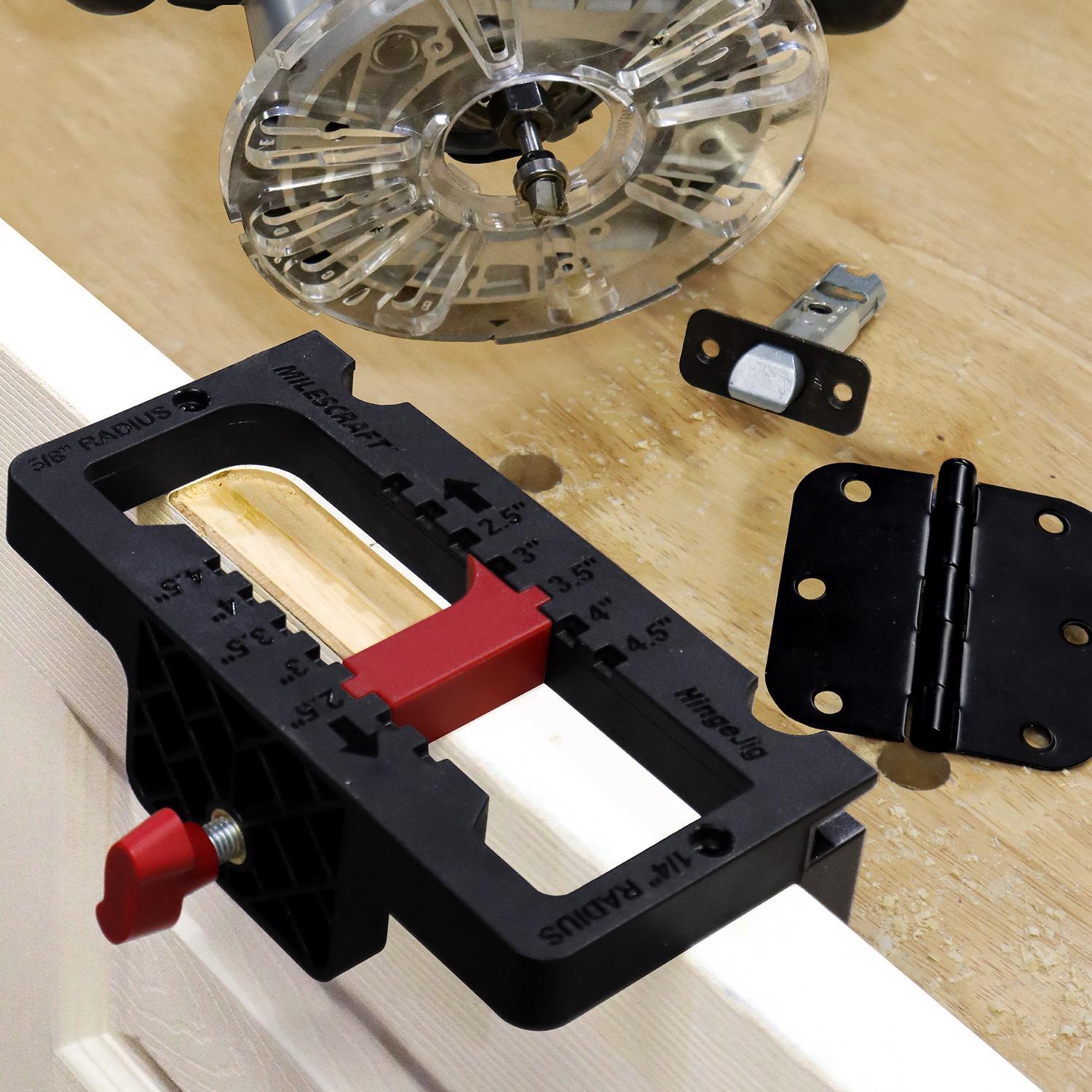

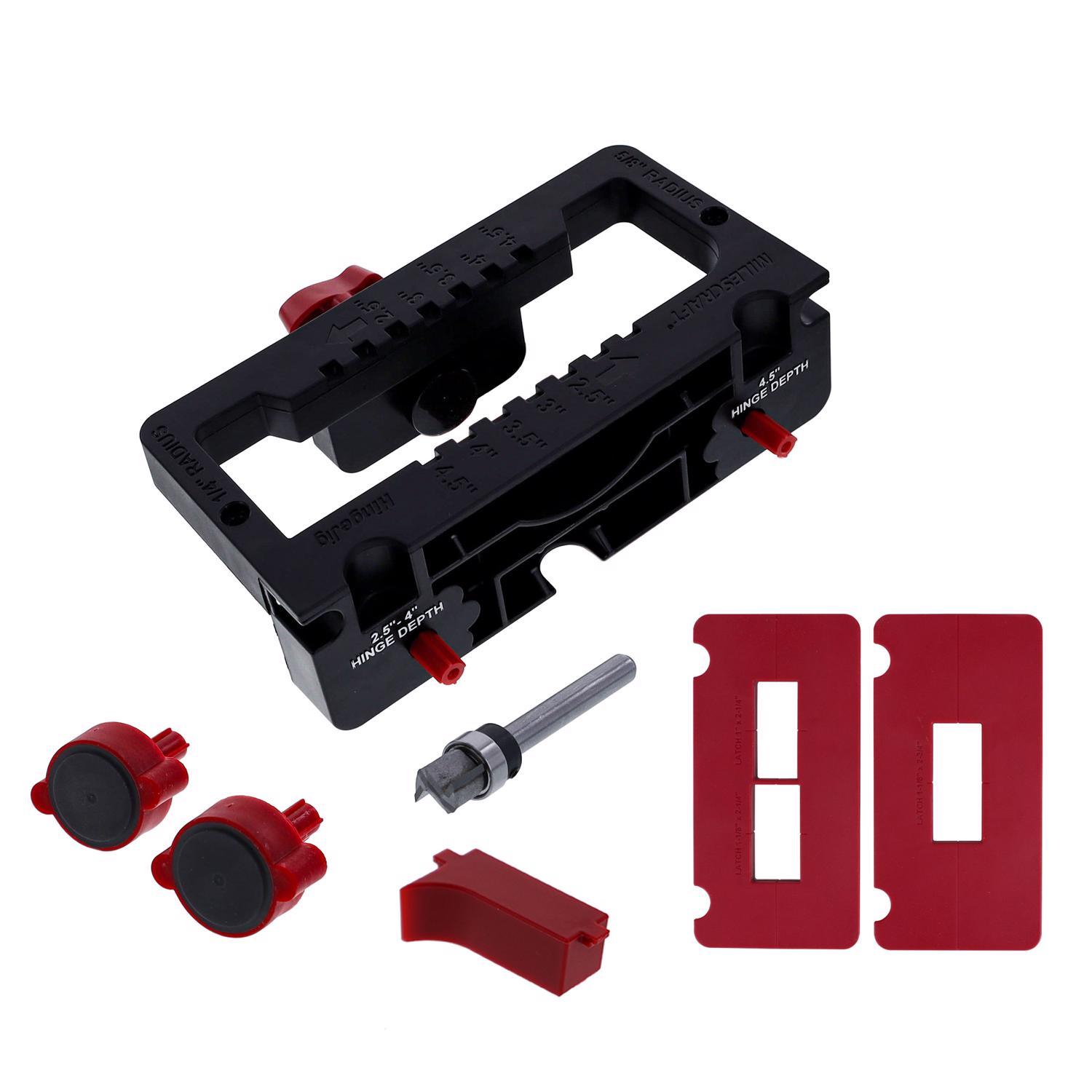

Save time and remove the guesswork when installing new doors into existing frames with the Milescraft Hinge Jig. This self-clamping jig comes with everything needed to rout hinge and latch mortises onto new doors. The self-clamping feature holds the Hinge Jig in place while routing without the use of screws or nails that can leave holes in a finished door. To use, place the mortise selector in the correct size position, set the backset plugs to the door setting, clamp, and rout. Create perfect hinge mortises in 2.5”, 3”, 3.5”, 4” and 4.5” sizing on both 1-3/8” and 1-3/4” doors. Easily change between 1/4” and 5/8” radiuses by routing on different sides of the jig. Rout on the left for one radius, and the right for the other. Built in depth settings makes sure that you cut to the right depth every time. The HingeJig also comes with drop in templates to rout latch mortises. Remove the hinge selector, set the backset plug to latch, and drop in the template that has one of three common door latch sizes. When the job is done, snap the router bit and separately available hinge bit into the built-in storage for convenient retrieval. For fast, easy, and accurate door installation, turn to the HingeJig for your next project.

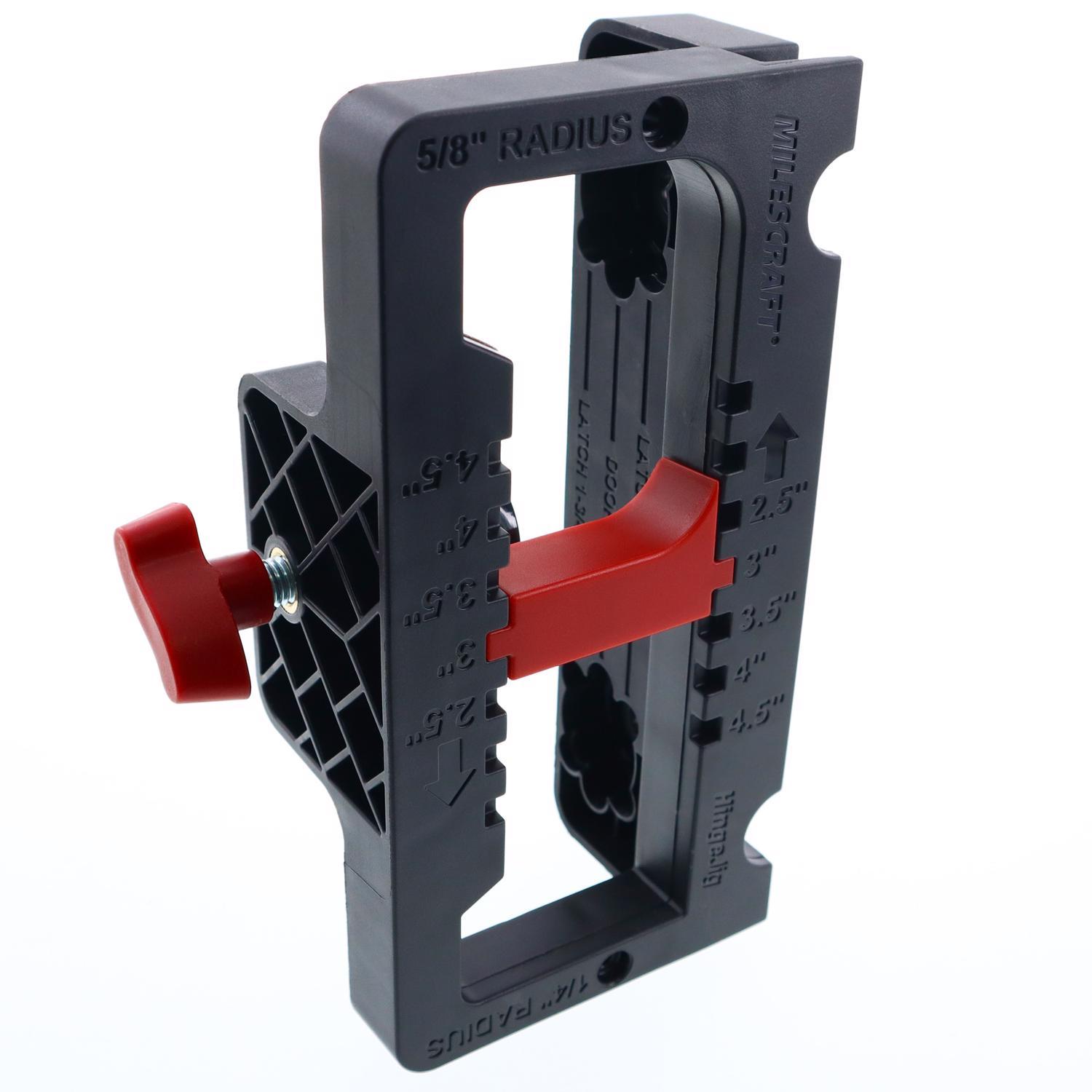

- Padded self-clamping design of door hinge installation jig sets up quickly and prevents damages to doors caused by mounting screws or nails
- Adjustable settings allow door hinge jig to be used on all standard size 1-3/8 inch and 1-3/4 inch thick doors
- Cut professional hinge mortises with 1/4 inch, 5/8 inch, or square corners (chisel required)
- Unique design of door hinge installation jig eliminates need for multiple inserts to rout different corner radiuses
- Door hinge installation kit routs hinge mortises for 2-1/2 inch to 4-1/2 inch door hinges

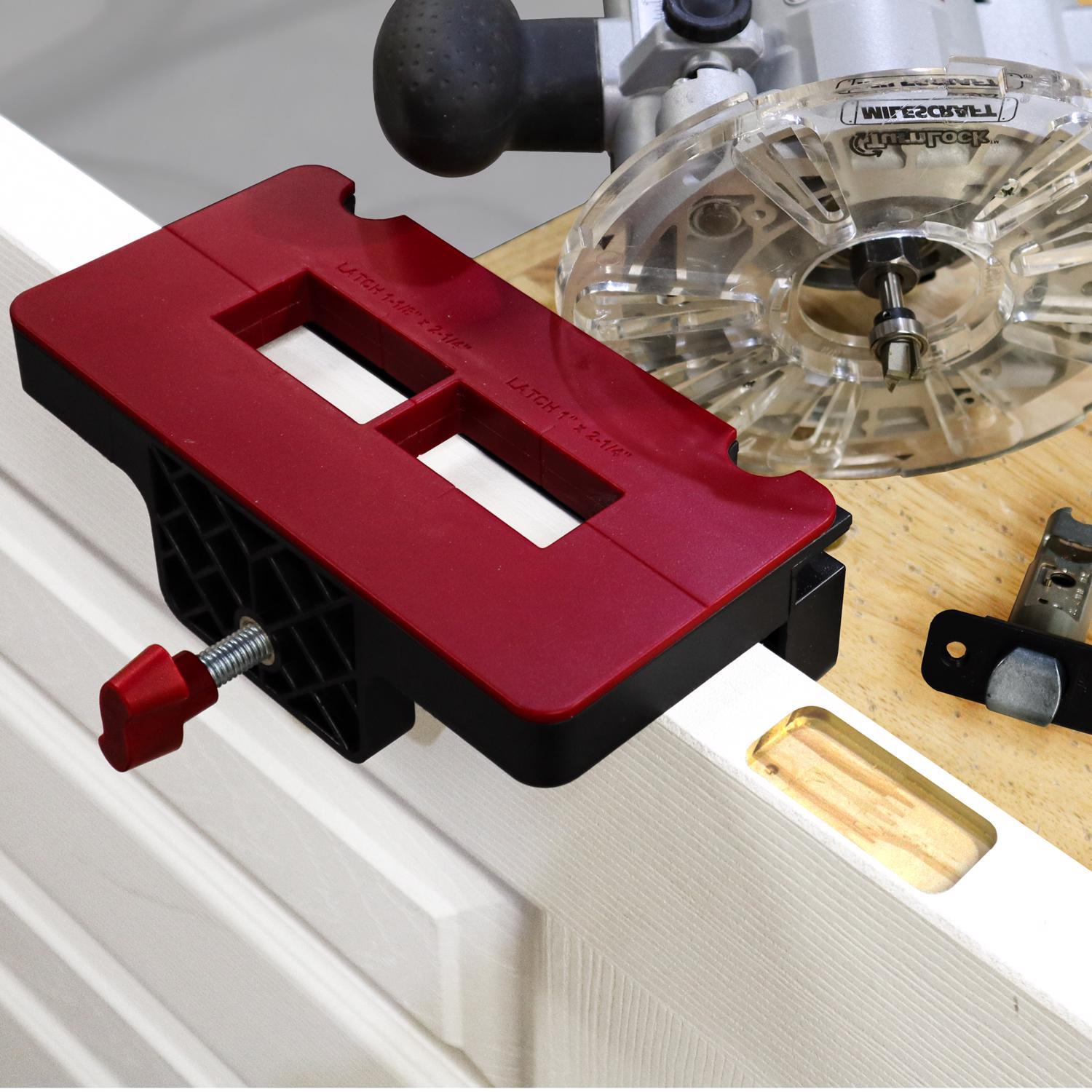

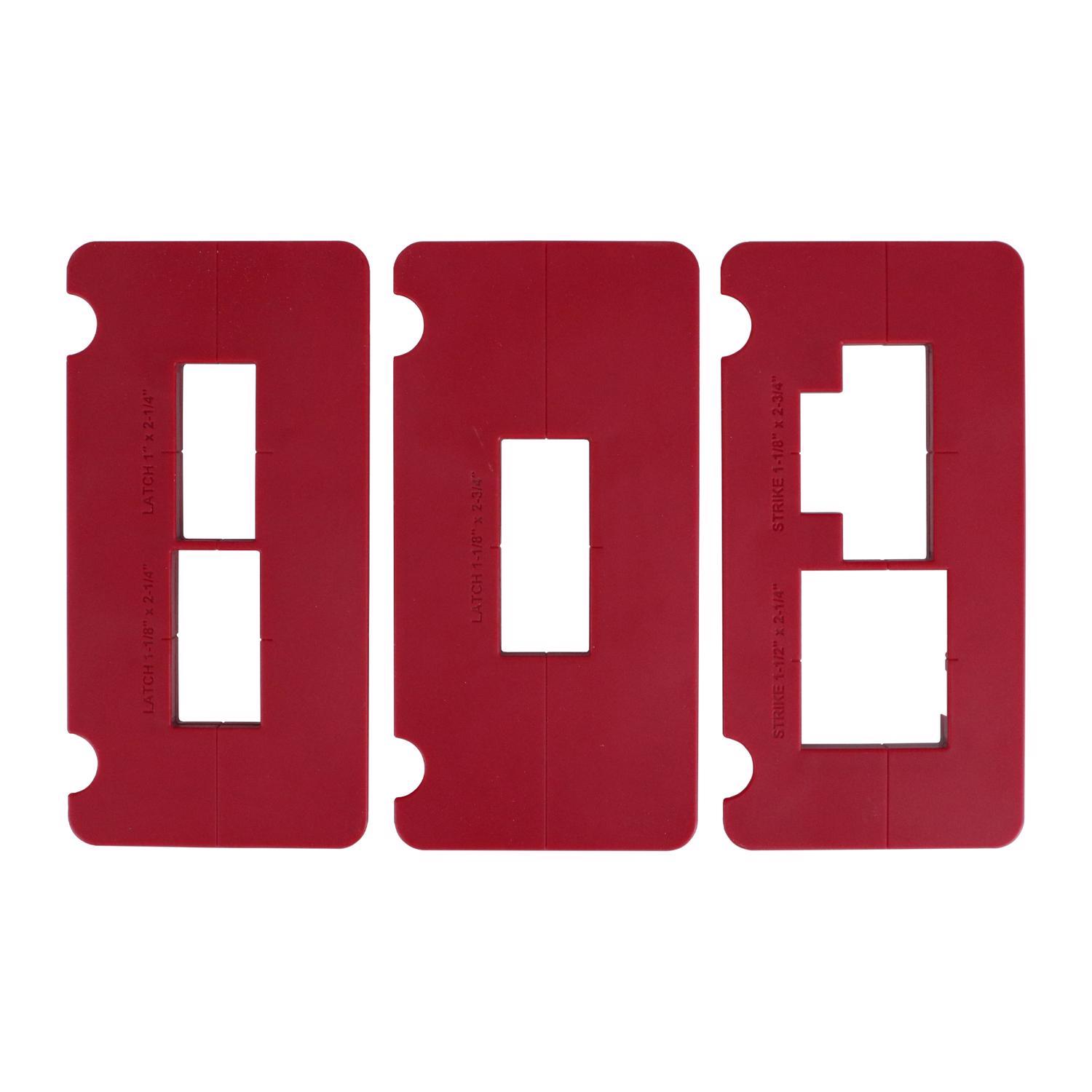

- Door hinge installation kit includes additional templates to rout common door latch mortises sized 1 inch x 2-1/4 inch , 1-1/8 inch x 2-1/4 inch , and 1-1/8 inch x 2-3/4 inch
- Set router bit depth with built-in depth setting gauge for smaller or larger size door hinges

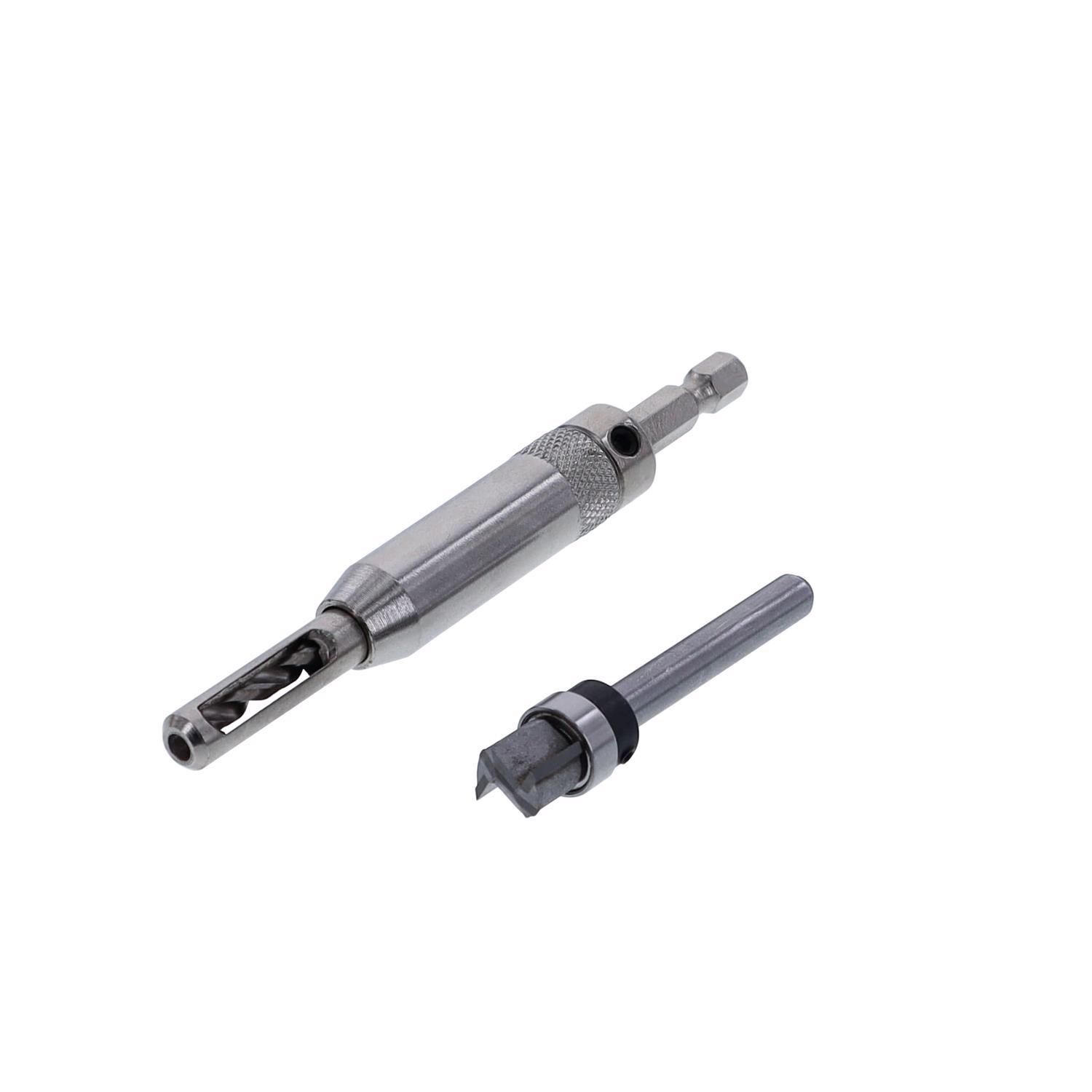

- Includes custom router bit with ball bearing to cut clean and smooth door hinge mortises
- Door hinge jig made from durable reinforced nylon plastic for repeated use and stable routing

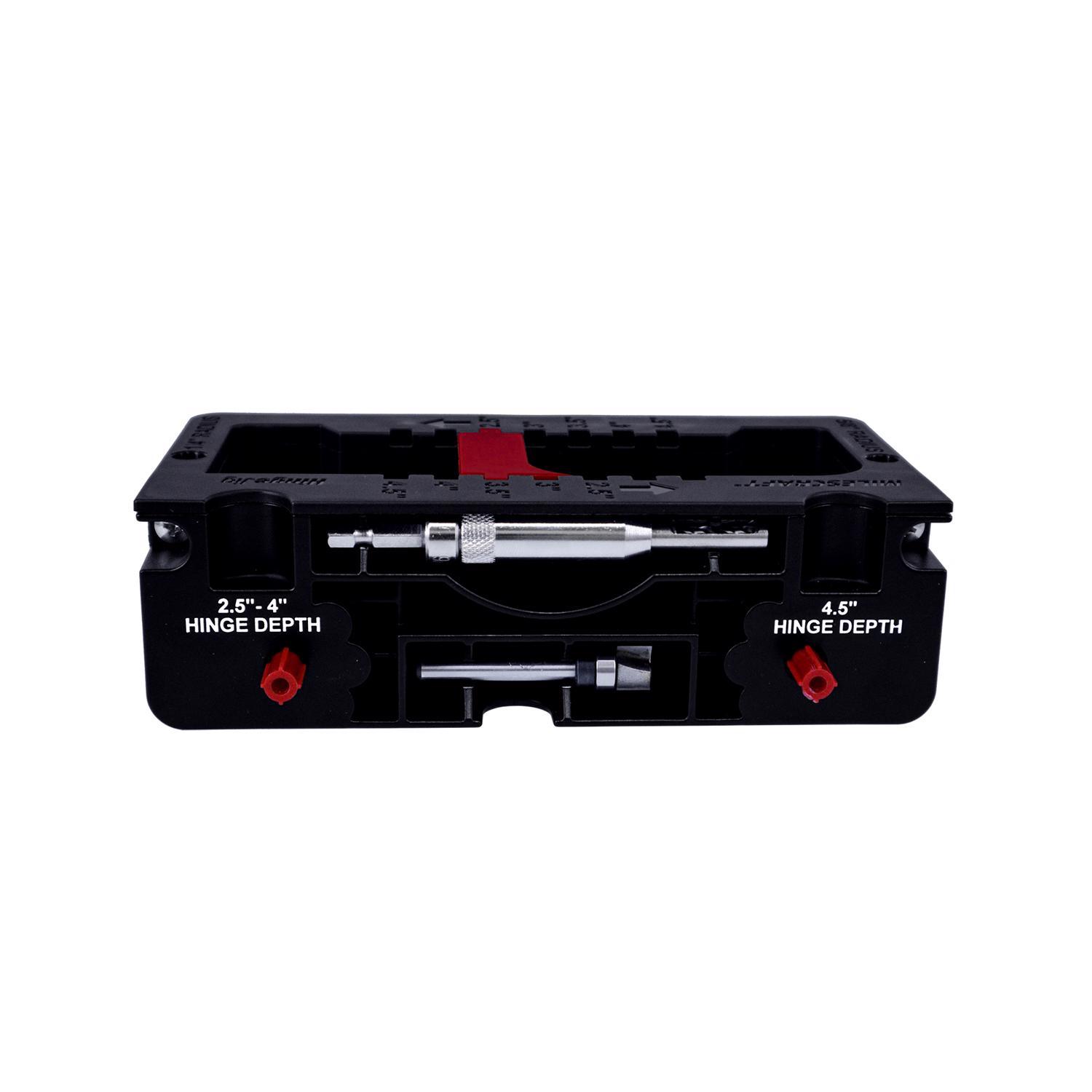

- Door mortising jig contains built in storage compartments for router bit and available self-centering hinge bit (not included) for convenient retrieval
- Milescraft
- 12260003
- 2037633
- Hinge Jig
- Door Hinge Template
- ABS Plastic
- 7 piece
- Boxed
- Hinge Jig
