Forney 1/8 in. D X 14.6 in. L Mild Steel Low-Hydrogen Welding Rods 84000 psi 5 lb
Forney 1/8 in. D X 14.6 in. L Mild Steel Low-Hydrogen Welding Rods 84000 psi 5 lb
Price Match Guarantee!
3
in stock at Sulphur
FREE Store Pickup
Available for Pickup Today!
Selected Store
Ship to Home
- Shipping is available for this item.
Send email
Print
Copy link

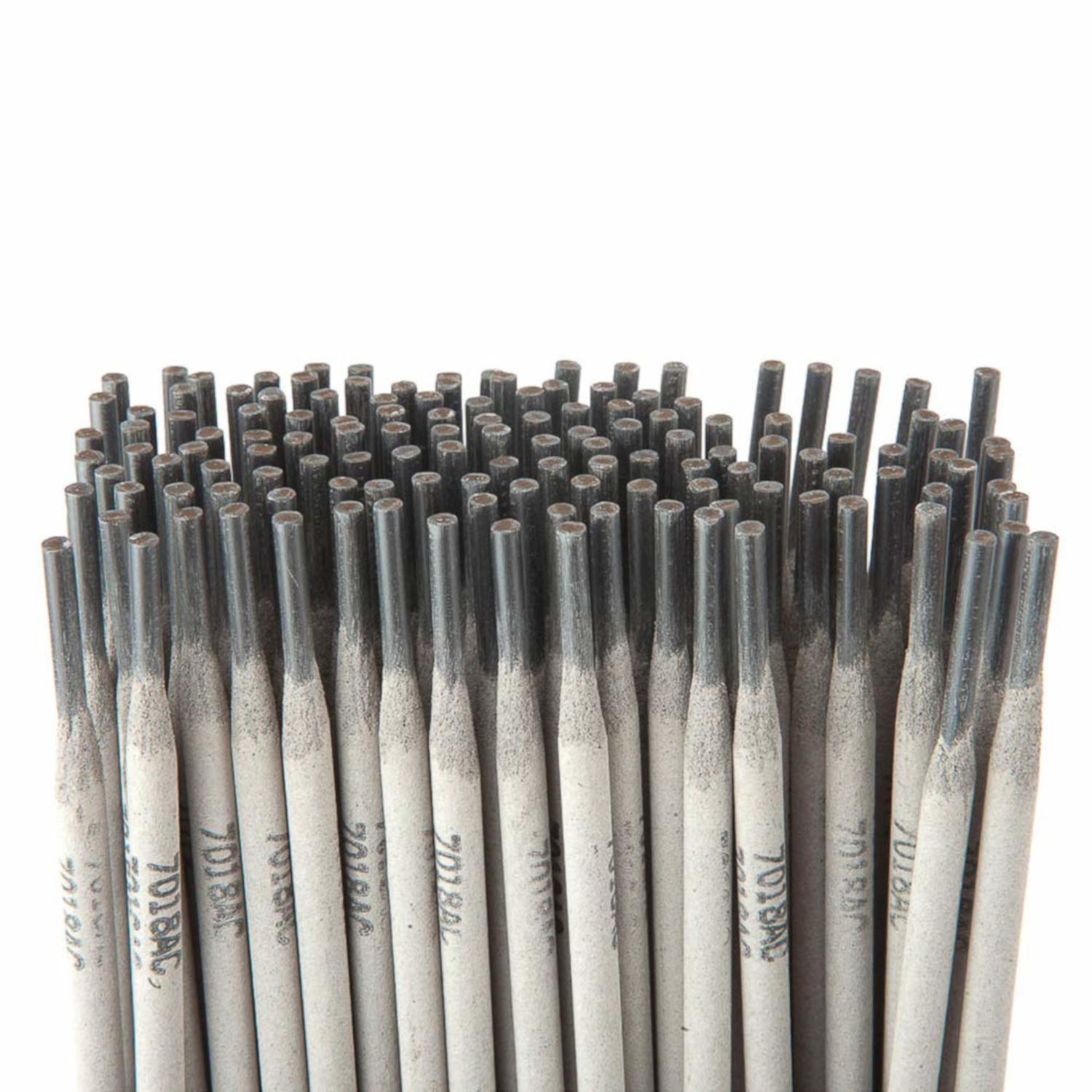

The Forney 30685 7018 AC Mild Steel Low Hydrogen Welding Rod produces quality results on lower amperage welders. Suitable for all positions on hard enable steels without pre-heating. Good for cold rolled steels that do not react well with conventional rod. Low hydrogen content reduces cracking. 1/8-Inch ie.3.175 mm diameter rod. 5-Pounds ie.2.26 kg. Tensile strength 70,000 PSI. Amperage 90-165 Amps AC, DCEP, DCEN Either Polarity. Typical Spec Example E6011: E is for electrode. The next two numbers ie.60, 70 or 80 indicates the tensile strength of the rod for example 60,000. The third number tells the welding position; ie.1=All position ie.2=Flat or Horizontal position ie.4=Flat, Horizontal, Overhead and Vertical Down position. The fourth number indicates the type of current to be used and coating of the rod; ie.0=Cellulose Sodium, with deep penetration, use Direct Current Electrode Positive ie.1=Cellulose Potassium, with deep penetration, use AC or Direct Current Electrode Positive, or Direct Current Electrode Negative ie.3=Titania Potassium, with light penetration, use AC or Direct Current Electrode Positive ie.8=Low Hydrogen, Iron Powder, with medium penetration use AC or Direct Current Electrode Positive. Claims for warranty must be made within 90 days of the date of purchase. Proof of purchase required. This warranty does not cover any product that has been subject to misuse, neglect, negligence or accident, or that has been used in any way contrary to the purpose intended.
- Low Hydrogen" welding rods easily produce quality results on smaller amperage AC/DC welders.
- It is suitable for all positions on hardenable steels where no pre-heat is used and on cold rolled steels normally exhibiting excessive porosity when welded with conventional rod.
- The low hydrogen content reduces cracking and peeling of the weld material
- Features excellent restart capability.
- Designed for welding low, medium and high carbon steels as well as some higher strength low alloy steel
- Forney
- 6
- 30685
- 2609964
- Low-Hydrogen Welding Rods
- AC/DC
- 1/8 inch
- 14.6 inch
- Mild Steel
- Boxed
- 84000 pound per square inch
- 5 pound
- 1598 degree Fahrenheit
